Product Category

Clear Varnish Aluminum Zinc Coil

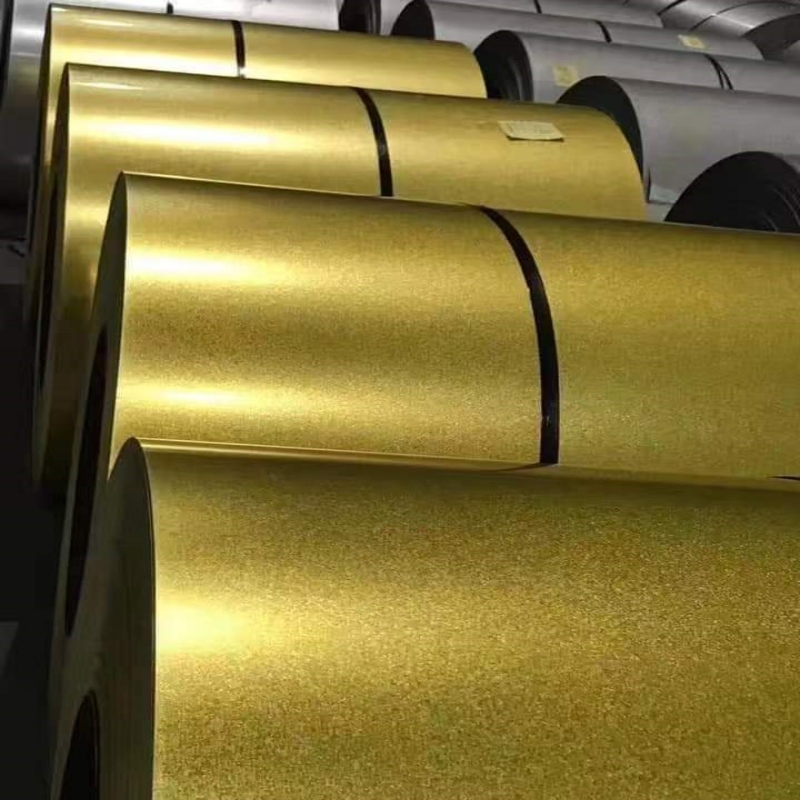

Clear varnish aluminum zinc coil is standard galvalume steel with a thin transparent organic coating (1–5 μm) applied over the Al-Zn surface. The clear lacquer preserves the natural metallic spangle appearance of the galvalume surface while adding fingerprint resistance during handling, extra barrier protection against initial white rust, and improved lubricity for roll forming. Thickness: 0.14–1.5 mm; width: up to 1,250 mm. Ideal for visible roofing and cladding where the natural galvalume look is preferred, plus appliance housings and general sheet metal fabrication.

Category :
Clear Varnish Aluminum Zinc Coil

Inquire

Detailed Description

Varnishing Al-Zn coated sheet involves applying a transparent organic coating (varnish or clear coat) over the surface of the Al-Zn coated steel sheet (GL sheet) to form a transparent protective film.Clear lacquer (or clear coat) is a colorless, transparent coating that forms a thin protective film without altering the metal's original color.

Product Name	Clear varnish aluminum zinc coil
Paint coating	Polyester paint(PE) High weather-resistant paint（HDP） PVDF
Zinc Coating	AZ30-Z275
Coil Weight	Coil Weight 3-5tons,or Customized
Usage	Construction ,Automobile,Electrical etc.
Standard	JIS G3302 / ASTM A653M / EN10327 / DIN17162
Grade	SGCC/DC51D/DX51D/DX52D/SGCC/Q195/Q235
Thickness	0.085mm-3.0 mm
Width	600-1250mm(normal size:914mm,1000mm,1200mm,1250mm,1220mm)

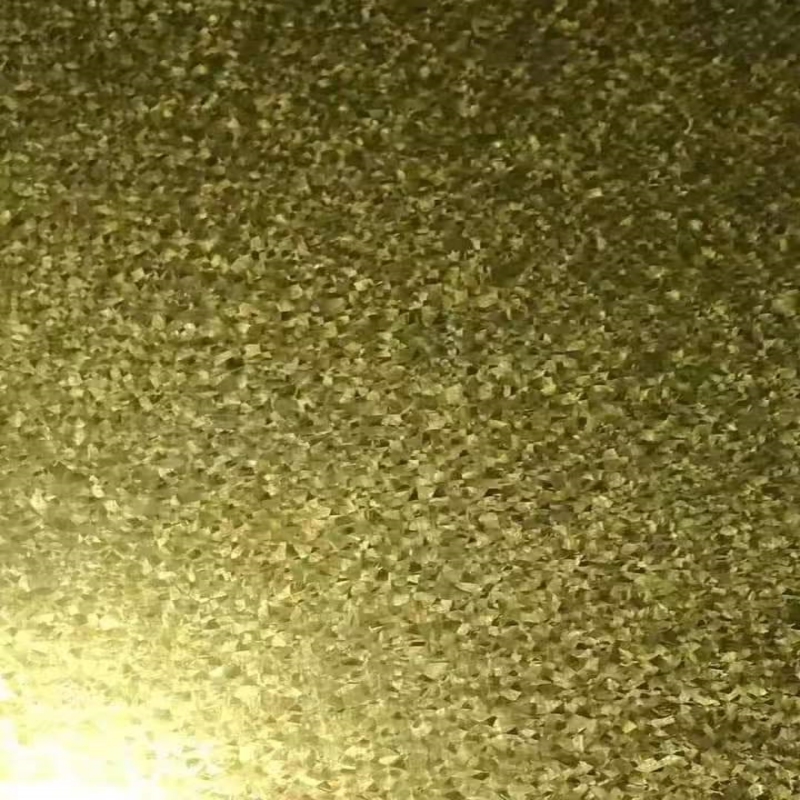

Spangle	Regular spangle,Minimum spangle, Zero spangle, Big spangle
Zinc coating	30~275G/M²
Hardness	Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95)
Color	RAL color，Customer color card
Delivery time	15 days

微信图片_20260618135815_365_367_副本微信图片_20260618135817_367_367_副本微信图片_20260618135812_361_367_副本

Key Functions

Enhanced corrosion resistance
Blocks air and moisture
Delays oxidation of the coating
Maintains surface luster
Prevents dulling and whitening
Retains a "bright silver" appearance for longer
Fingerprint and contamination resistance
Reduces adhesion of fingerprints and oily residue
Easier to clean
Improved weather resistance
Ideal for outdoor exposure
Extends service life

Why Choose JXL STEEL

Superior Materials – We use premium galvanized steel sheets with a durable coating to ensure a long service life.
Customization Options – We offer a variety of colors, thicknesses, and coating types to meet your project needs.
Strict Quality Control – Each roll of steel undergoes comprehensive testing (coating, adhesion, corrosion, mechanical properties).
Competitive Pricing – Excellent value for money without compromising quality.
On-Time Delivery – An efficient production and logistics system ensures timely delivery.
Technical Support – We provide professional guidance on product selection, installation, and maintenance.

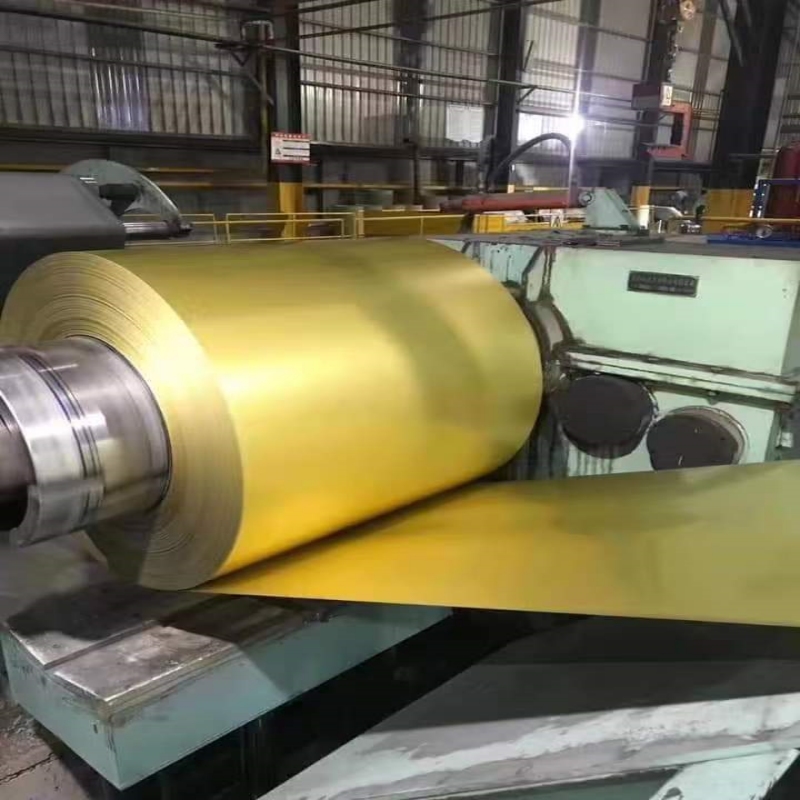

Color steel coil production line

(JXL Steel production line)

Quality Inspection

We first conduct a visual inspection to ensure the galvanized color steel coils are free of defects, facilitating subsequent processing and aesthetic use.
Coating Performance Testing: We use a magnetic thickness gauge or coating thickness gauge to test the paint film thickness, ensuring it meets the customer's required thickness. JXL STEEL can produce paint films with a thickness of 25 microns on both the front and back sides. After testing, we sequentially conduct adhesion, bending performance, hardness, and impact resistance tests to ensure the paint does not crack or peel during customer use, and the product is fully qualified.
Corrosion Resistance Testing: We will conduct salt spray tests to ensure that the color remains vibrant even in harsh operating environments.

Substrate Mechanical Property Testing

Project	Method	Common requirements
Yield strength	tensile test	190~350 MPa
Tensive strength	tensile test	270~450 MPa
Elongation	tensile test	≥20%
Bending performance	bending test	Bending diameter as specified by thickness
Stamping performance	stamping test	No cracks

（The data table above is taken from the test data of the DX51D grade. If you have any special requirements, please contact us.）

d189f127-d7be-4c0f-8bd3-d978974a09ba_副本

微信图片_20260608134328_37_1958_副本

We have set up a sun exposure testing ground outside our factory, where some samples have been stored for over 10 years, yet they still look brand new and have vibrant colors.
A third party is conducting an independent inspection of our products.

Export Cases

We receive a large number of foreign visitors every day, and they all give high praise and recognition to the color steel coils produced by our company.

Shipping site

Whether you choose container shipping or bulk cargo shipping, JXL STEEL guarantees that the products delivered to your factory will be intact and undamaged.
