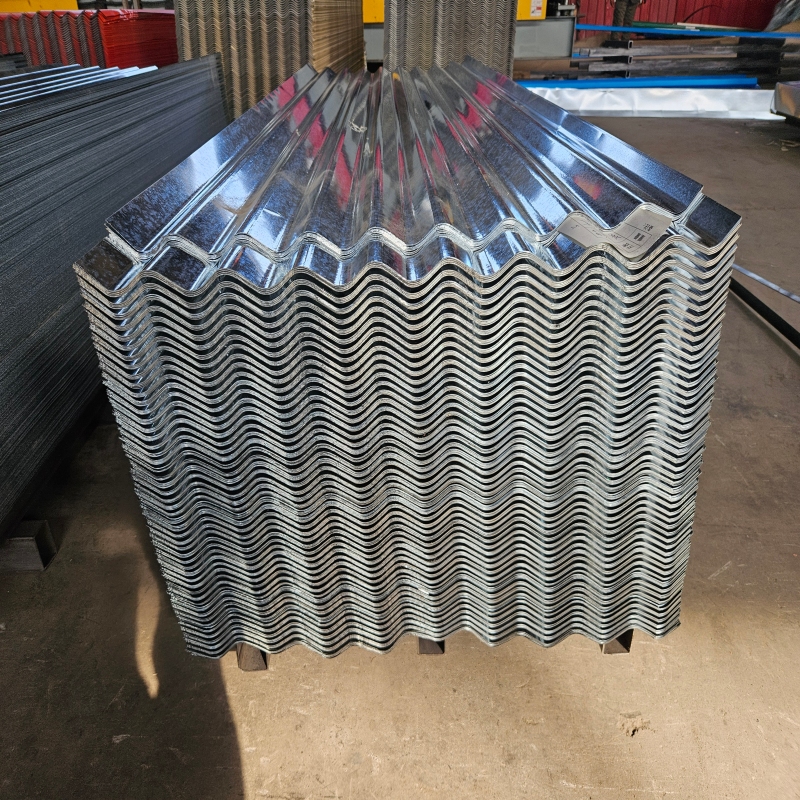

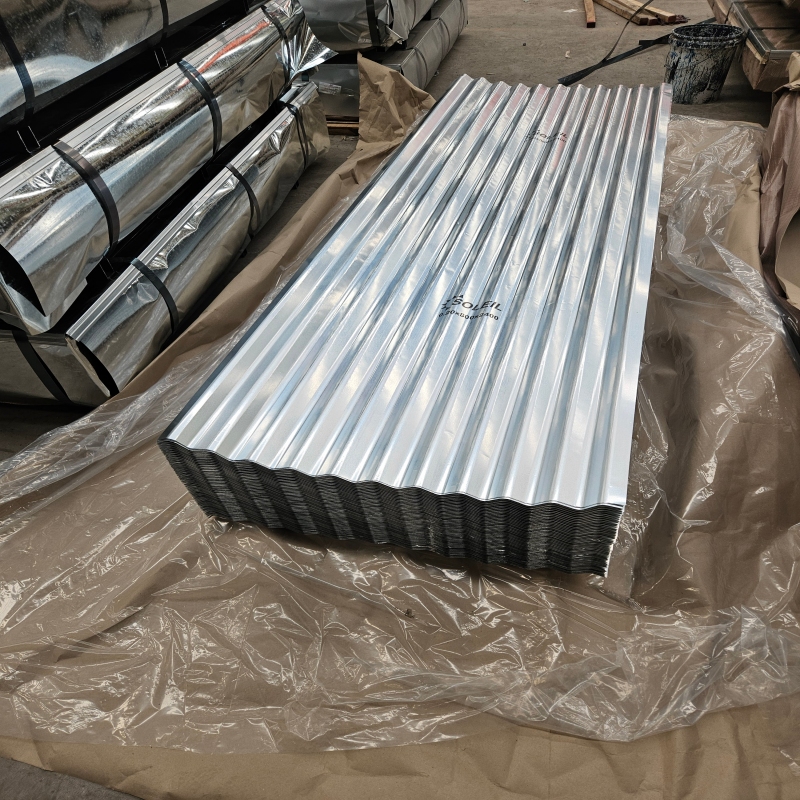

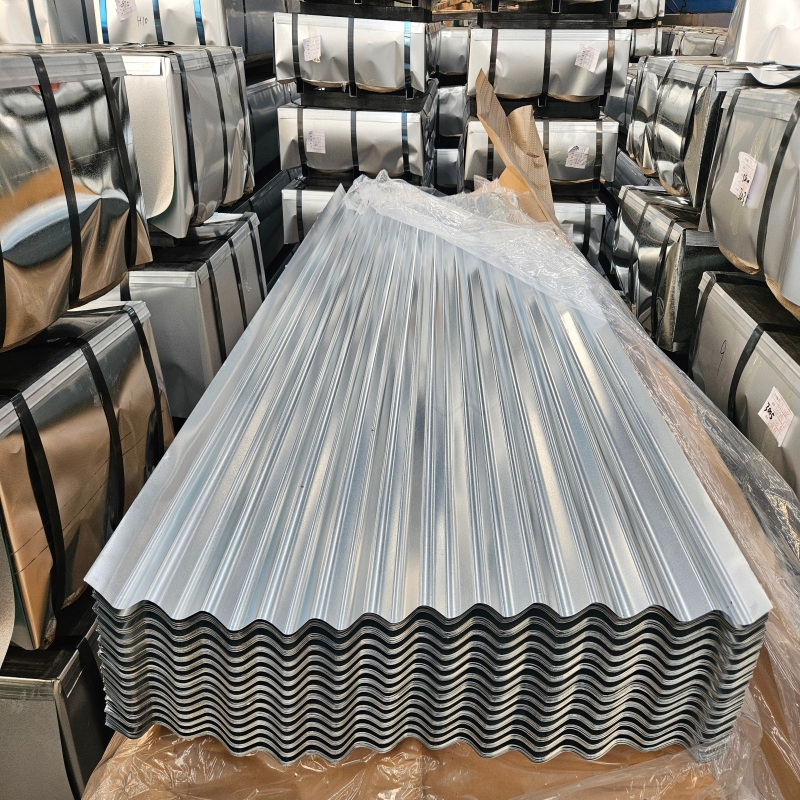

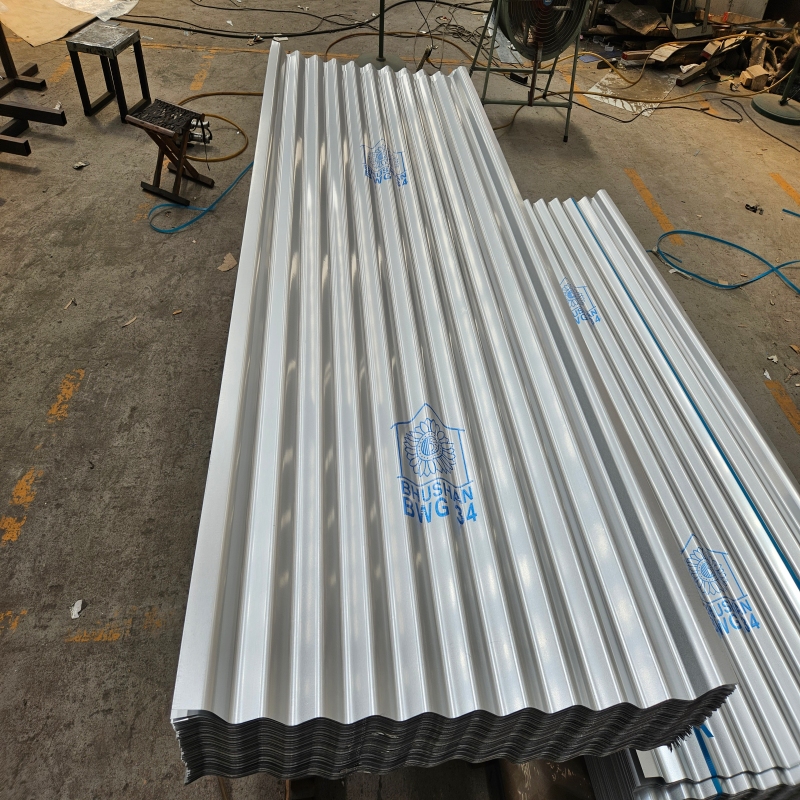

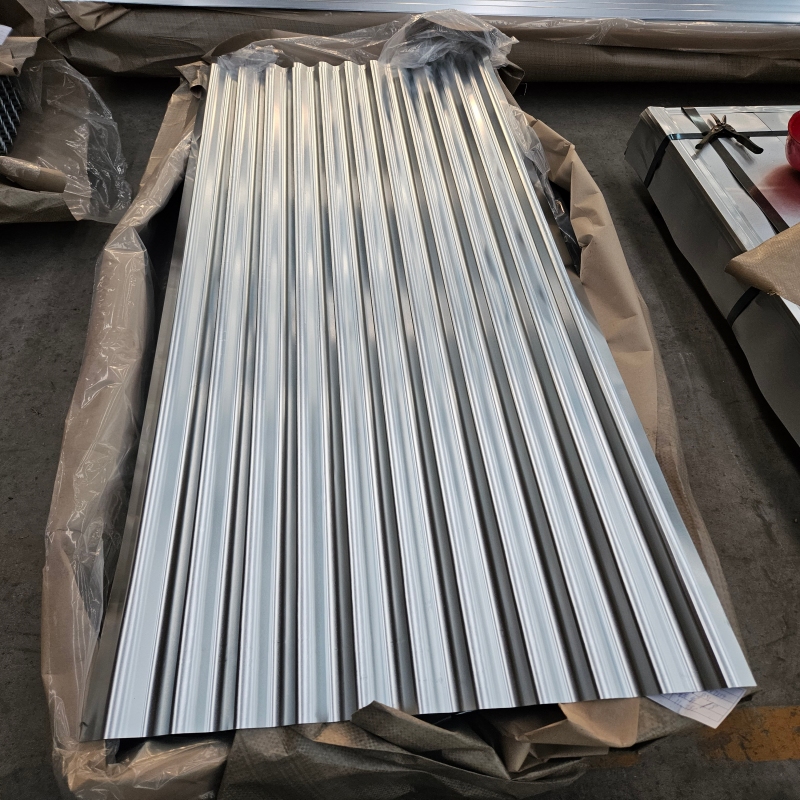

Galvanized corrugated sheets

Galvanized corrugated sheets (also known as galvanized corrugated roofing or wall panels) are roofing or wall cladding panels made from galvanized steel (GI) that have been processed using roll-forming equipment into a continuous wave-like profile.
Galvanized corrugated sheet = Unpainted galvanized steel sheet formed into a wave-like roofing panel.

Key Features

• Basic Corrosion Resistance
  Relies on a zinc coating for rust prevention
  More corrosion-resistant than standard steel sheets
•  Good Strength
  Corrugated structure enhances load-bearing capacity
  Suitable for roofing applications
• Low Cost
  No color coating → More economical
• Easy Processing
  Easy to profile and install
  Convenient for construction

Differences Between Galvanized Corrugated Sheets and "Color-Coated Steel Corrugated Sheets"

Why Choose JXL STEEL？

• Superior Materials – We use premium galvanized steel sheets with a durable coating to ensure a long service life.
• Customization Options – We offer a variety of colors, thicknesses, and coating types to meet your project needs.
• Strict Quality Control – Each roll of steel undergoes comprehensive testing (coating, adhesion, corrosion, mechanical properties).
• Competitive Pricing – Excellent value for money without compromising quality.
• On-Time Delivery – An efficient production and logistics system ensures timely delivery.
• Technical Support – We provide professional guidance on product selection, installation, and maintenance.

                                    (JXL Steel production line)

Quality Inspection

• We first conduct a visual inspection to ensure the galvanized color steel coils are free of defects, facilitating subsequent processing and aesthetic use.
• Coating Performance Testing: We use a magnetic thickness gauge or coating thickness gauge to test the paint film thickness, ensuring it meets the customer's required thickness. JXL STEEL can produce paint films with a thickness of 25 microns on both the front and back sides. After testing, we sequentially conduct adhesion, bending performance, hardness, and impact resistance tests to ensure the paint does not crack or peel during customer use, and the product is fully qualified.
• Corrosion Resistance Testing: We will conduct salt spray tests to ensure that the color remains vibrant even in harsh operating environments.
• Substrate Mechanical Property Testing

  Project	Method	Common requirements
  Yield strength	tensile test	190~350 MPa
  Tensive strength	tensile test	270~450 MPa
  Elongation	tensile test	≥20%
  Bending performance	bending test	Bending diameter as specified by thickness
  Stamping performance	stamping test	No cracks

  （The data table above is taken from the test data of the DX51D grade. If you have any special requirements, please contact us.）





•



  We have set up a sun exposure testing ground outside our factory, where some samples have been stored for over 10 years, yet they still look brand new and have vibrant colors.
• A third party is conducting an independent inspection of our products.

Export Cases

•

•

• We receive a large number of foreign visitors every day, and they all give high praise and recognition to the color steel coils produced by our company.

Shipping site

•

•

• Whether you choose container shipping or bulk cargo shipping, JXL STEEL guarantees that the products delivered to your factory will be intact and undamaged.
