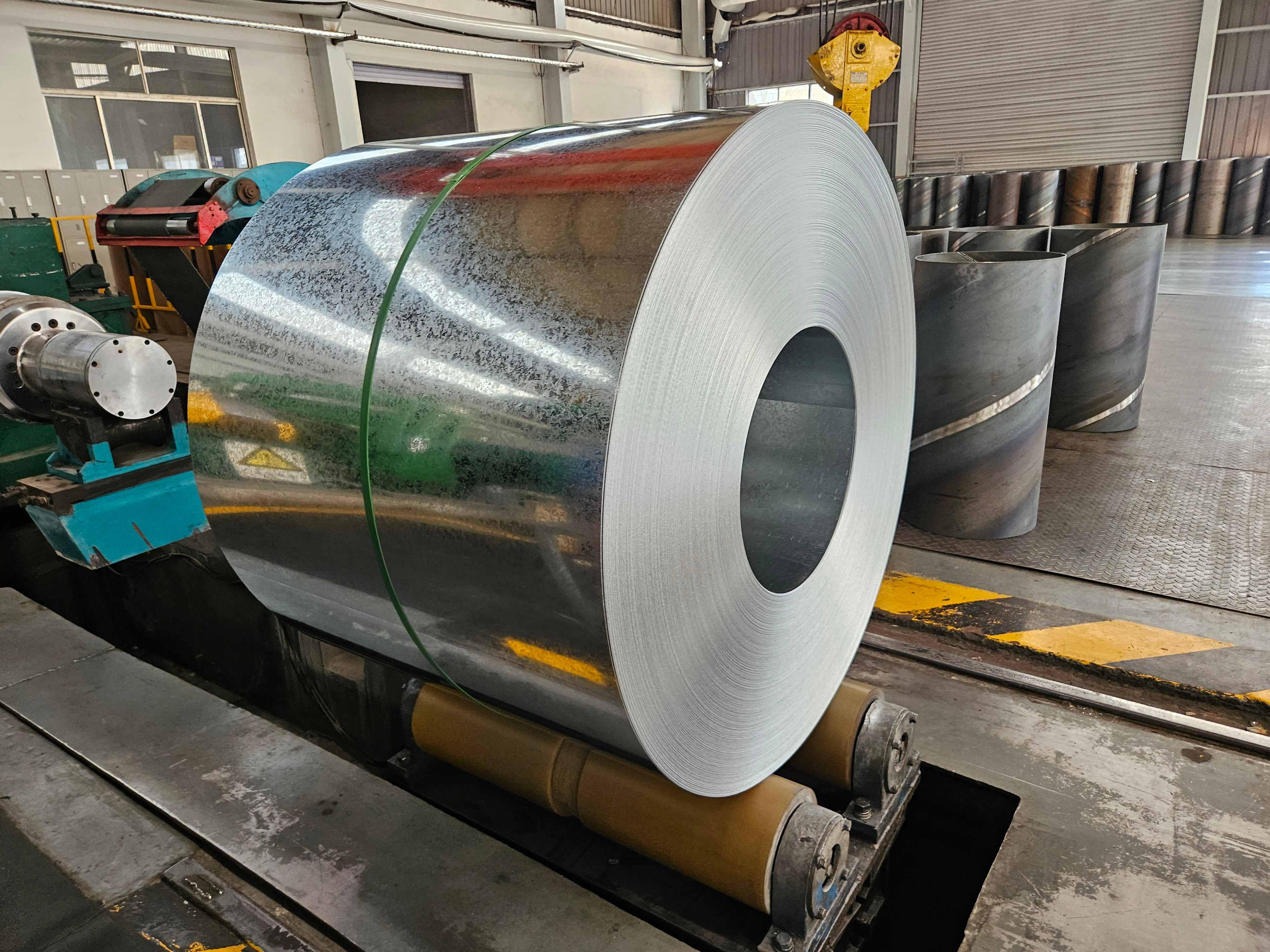

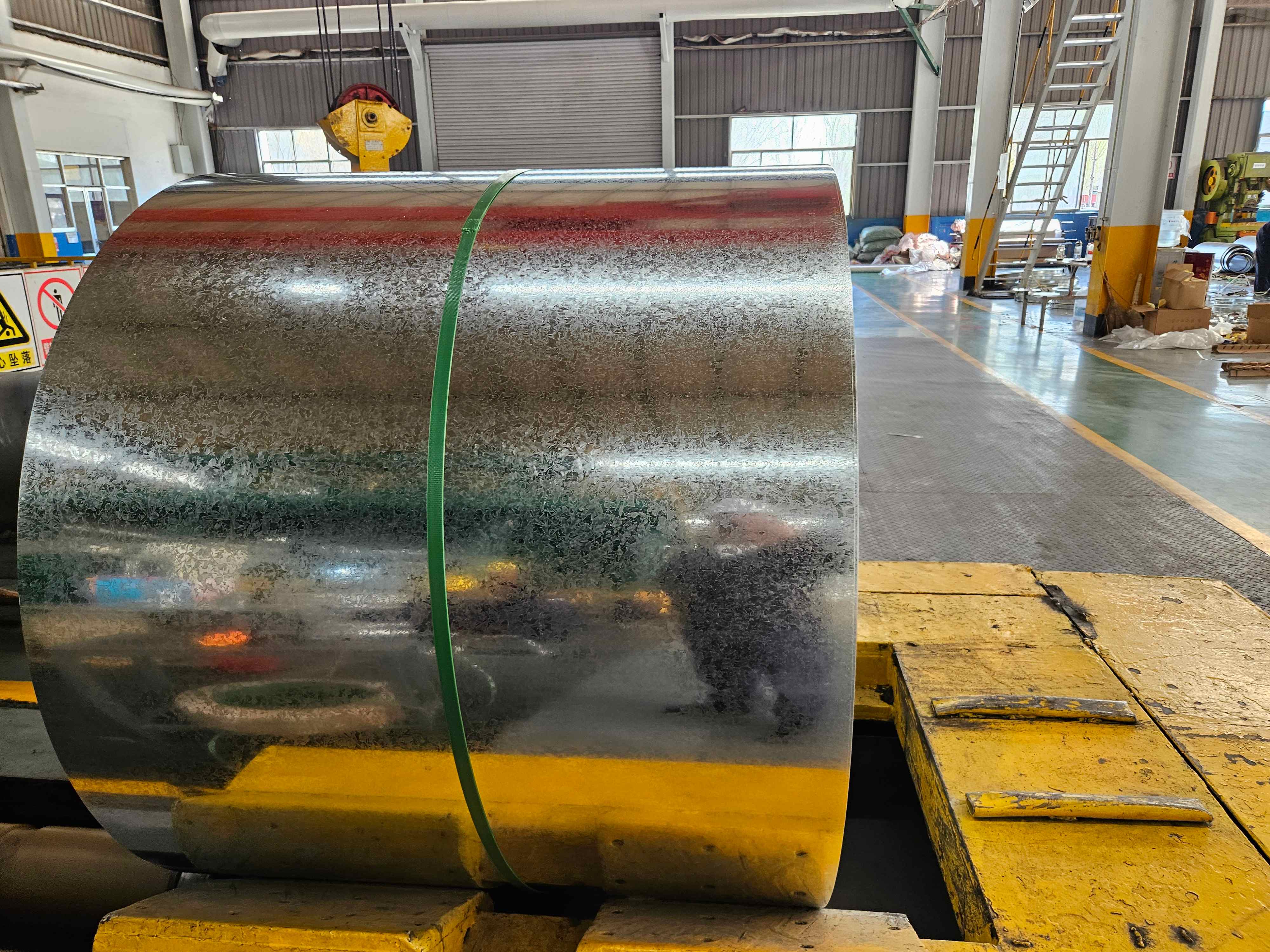

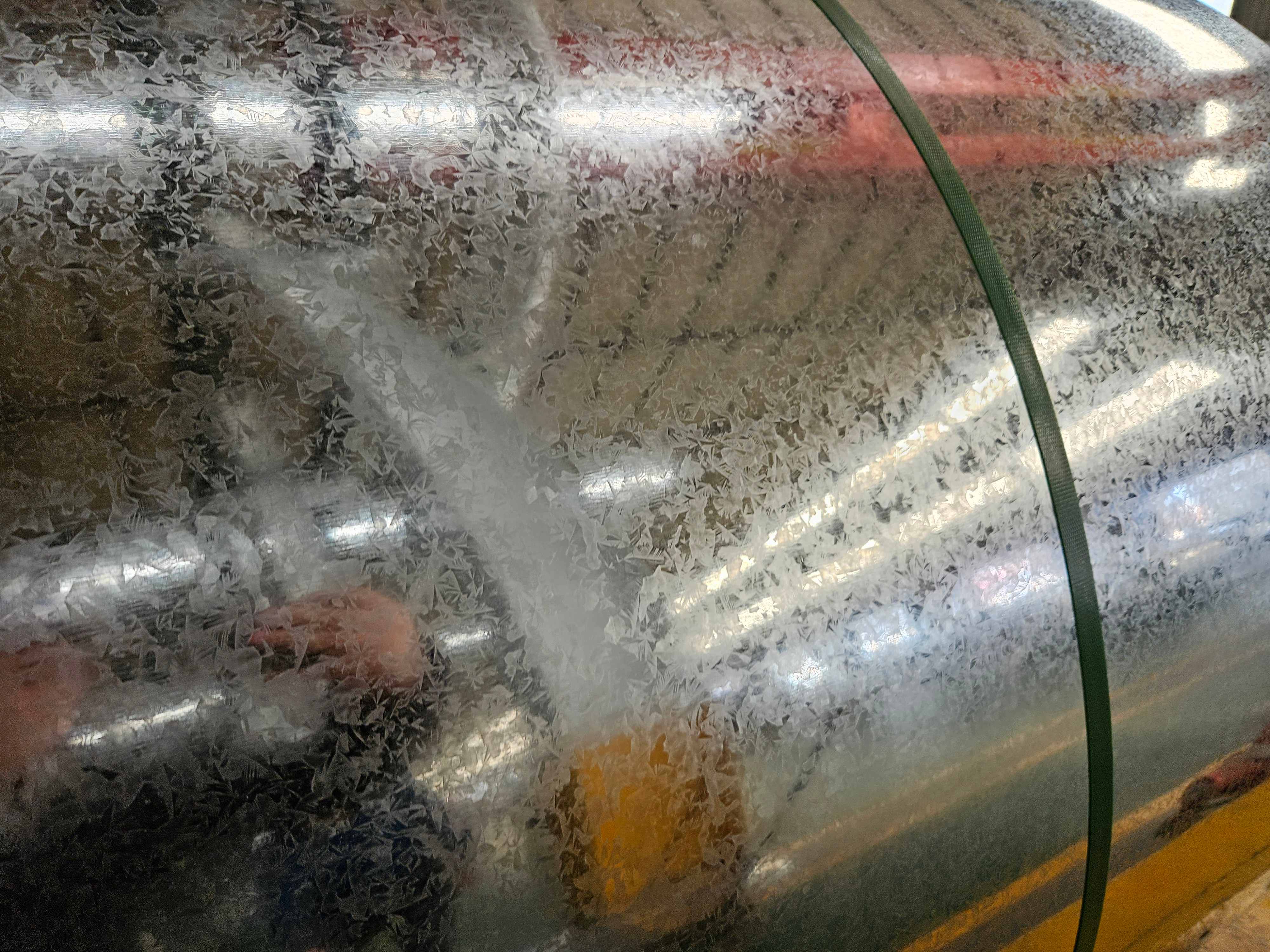

Flower-patterned galvanized coil

Galvanized steel coil refers to steel products that have a layer of zinc (Zn) coated on the surface of cold-rolled or hot-rolled steel strip and are supplied in coil or sheet form. Galvanized sheets are divided into spangled galvanized coils and unspangled galvanized coils. The zinc spangles in spangled galvanized coils are formed through a cooling and solidification process, and are generally divided into two types: large spangles and small spangles. Large spangles have coarser zinc grains, while small spangles have a smoother surface and better coating performance.

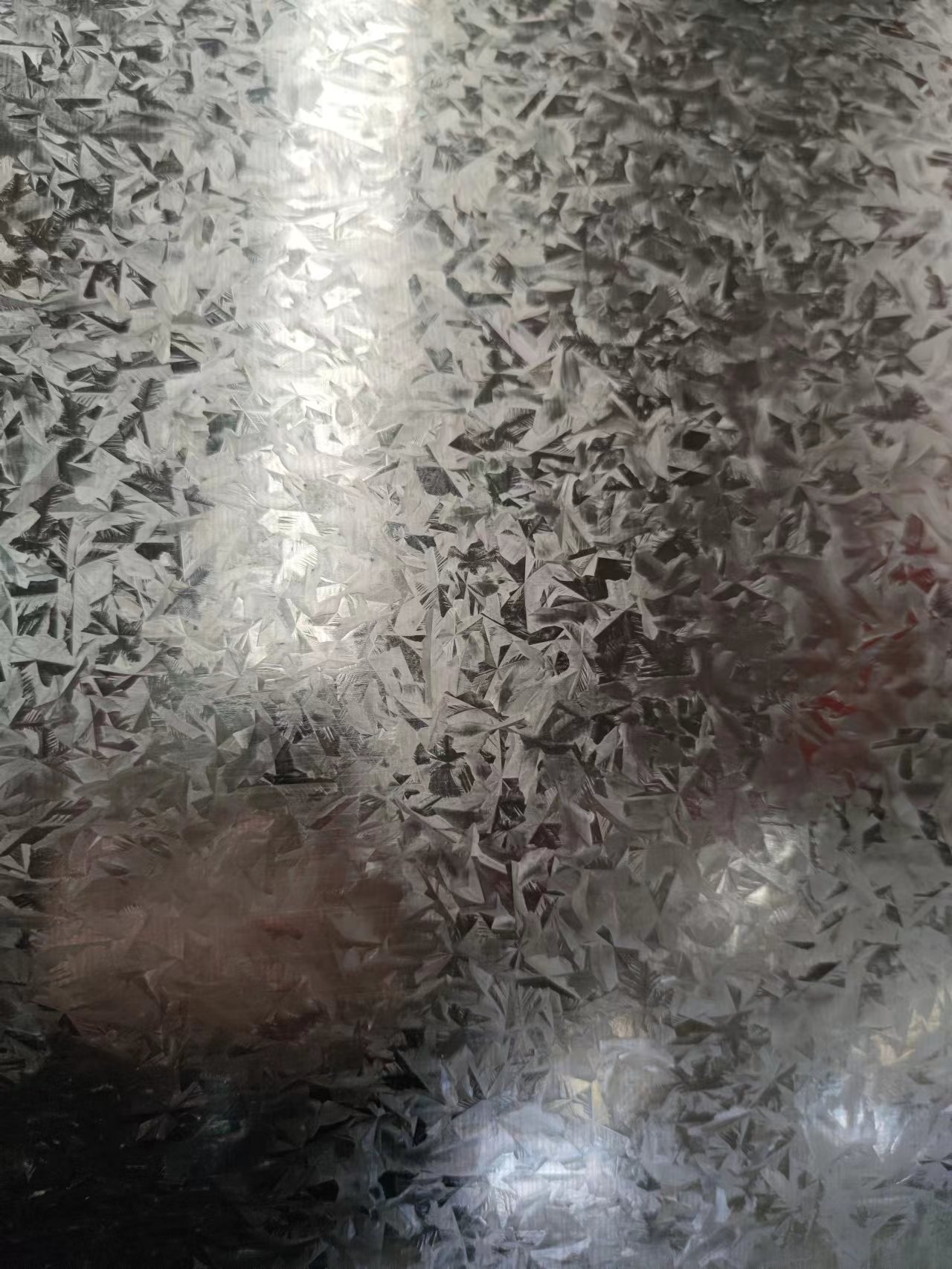

What is the "flower" of Flower-patterned galvanized coil?

This "flower" usually refers to the zinc crystal texture formed during the crystallization process of the galvanized layer. Common ones include:

•  Large zinc flowers (obvious crystal graininess)
• Small zinc flowers (more delicate)
• No zinc splatter (more uniform surface, common in modern technology)

In some cases, decorative texture effects formed through process control are also included.

Features of Flower-Patterned Galvanized Coil？

• Surface has a natural metallic crystalline texture, giving it a "flowery" appearance.
• It has a galvanized layer, providing strong rust and corrosion resistance.
• Its appearance has a more pronounced metallic feel than ordinary non-flowering sheets.
• Suitable for applications where aesthetics are a priority.

Why Choose JXL STEEL？

• Superior Materials – We use premium galvanized steel sheets with a durable coating to ensure a long service life.
• Customization Options – We offer a variety of colors, thicknesses, and coating types to meet your project needs.
• Strict Quality Control – Each roll of steel undergoes comprehensive testing (coating, adhesion, corrosion, mechanical properties).
• Competitive Pricing – Excellent value for money without compromising quality.
• On-Time Delivery – An efficient production and logistics system ensures timely delivery.
• Technical Support – We provide professional guidance on product selection, installation, and maintenance.

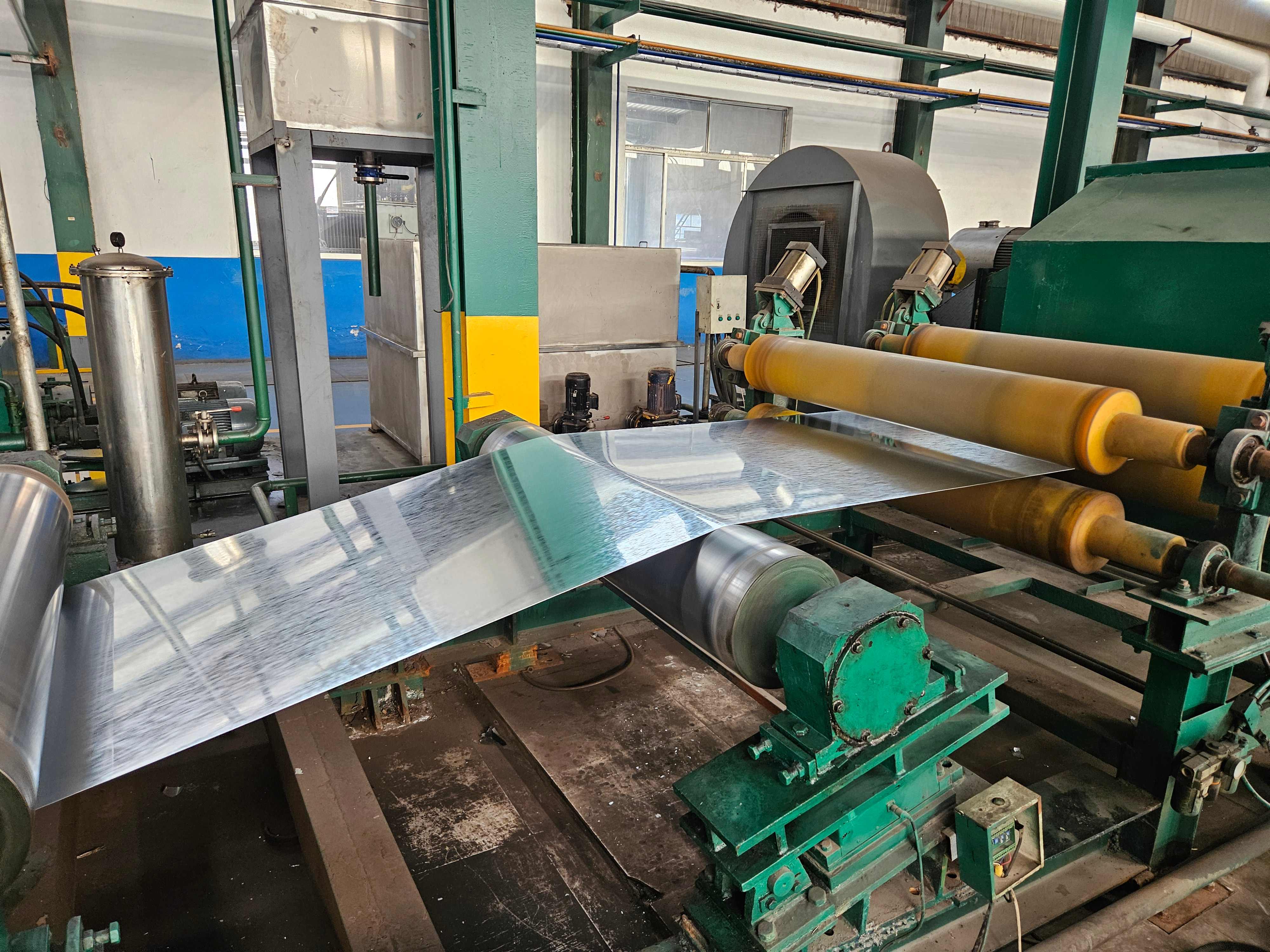

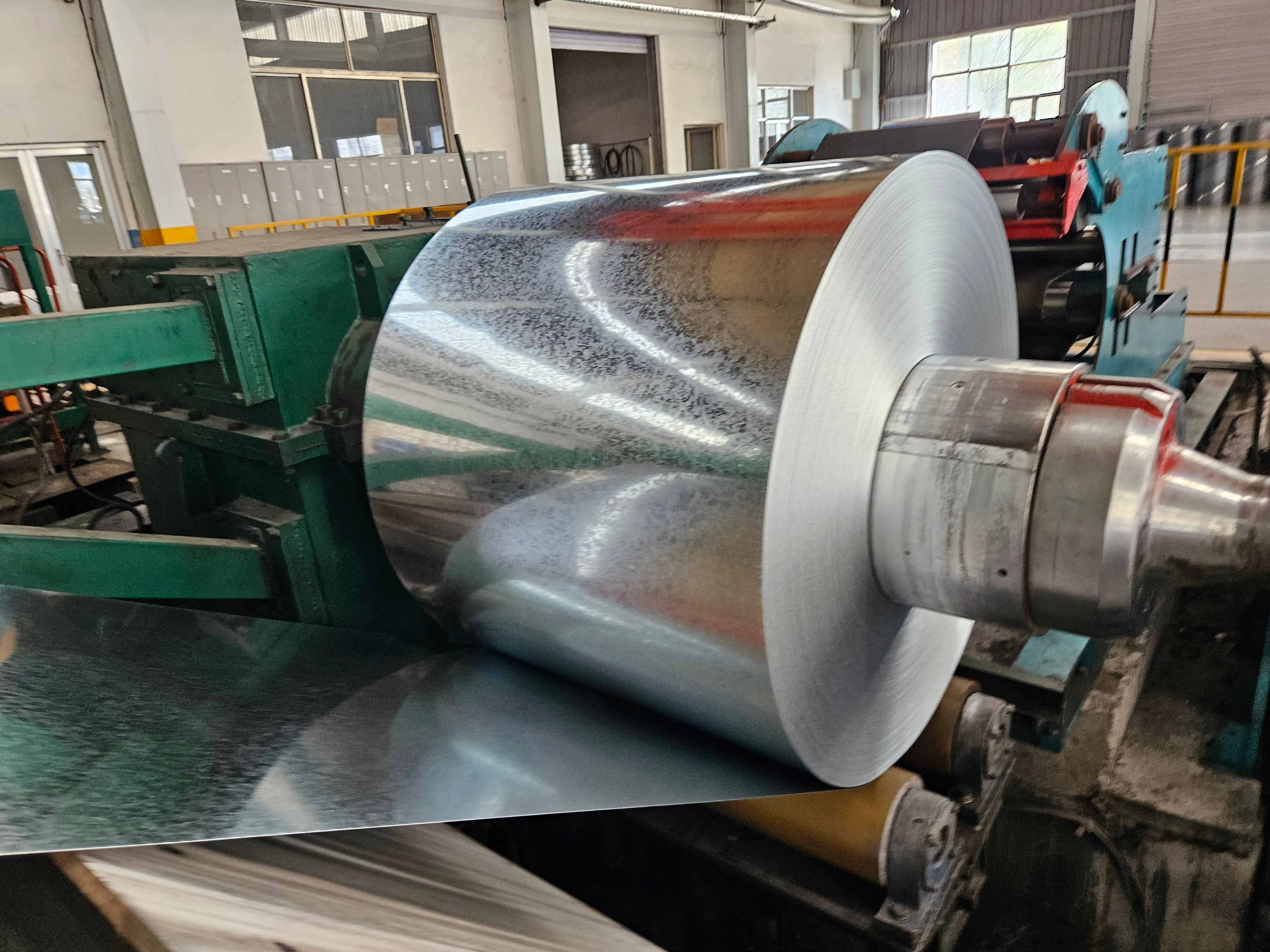

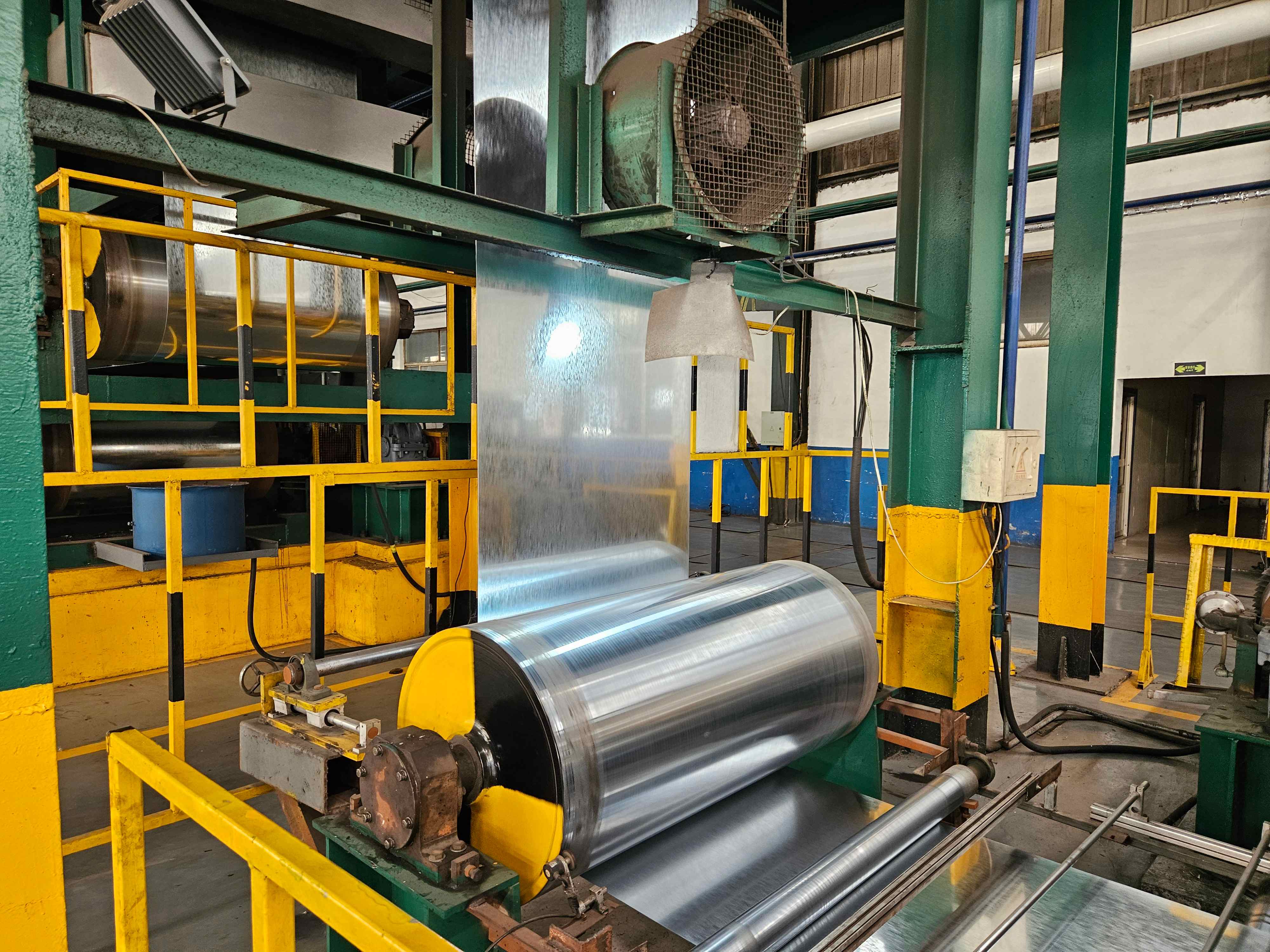

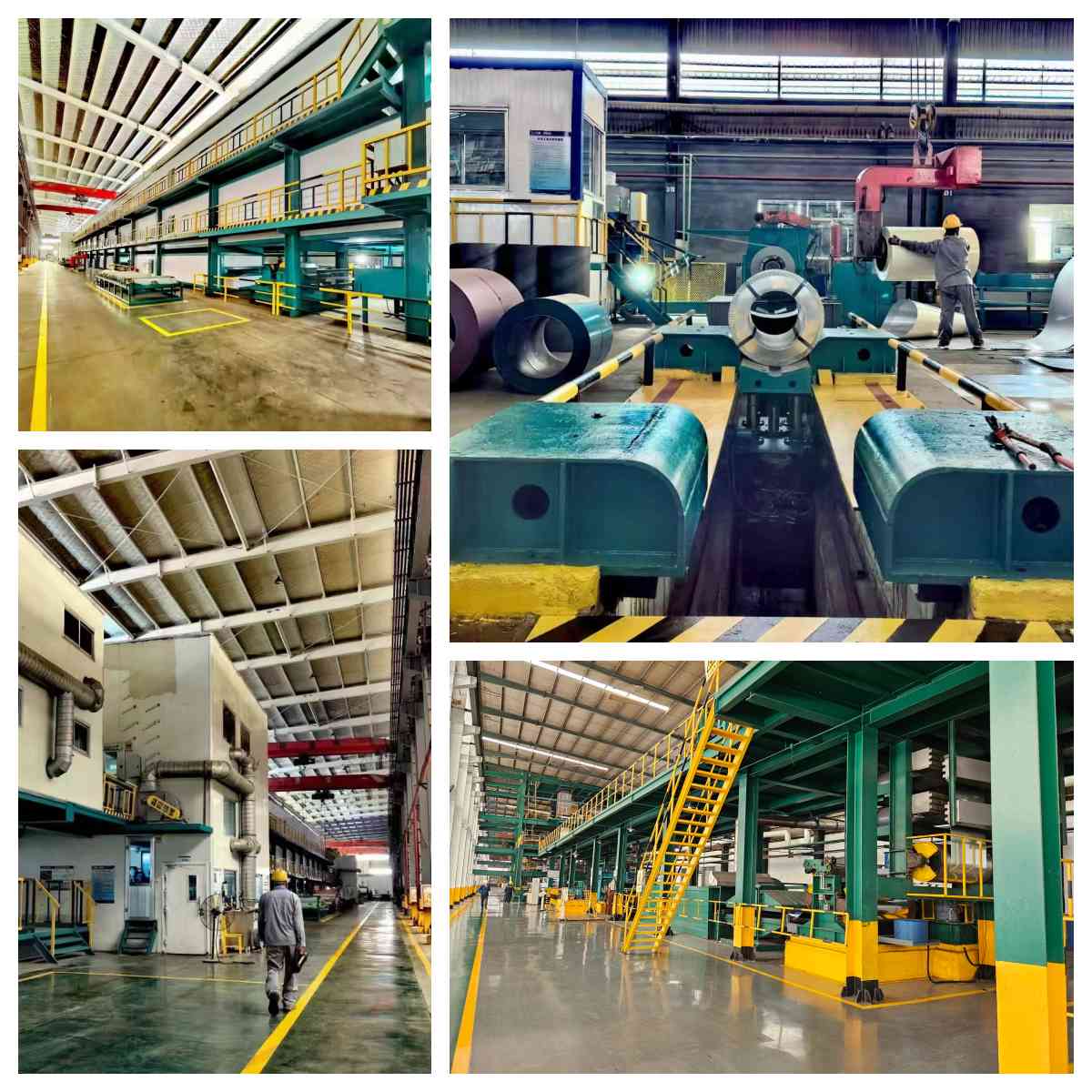

                                    (JXL Steel production line)

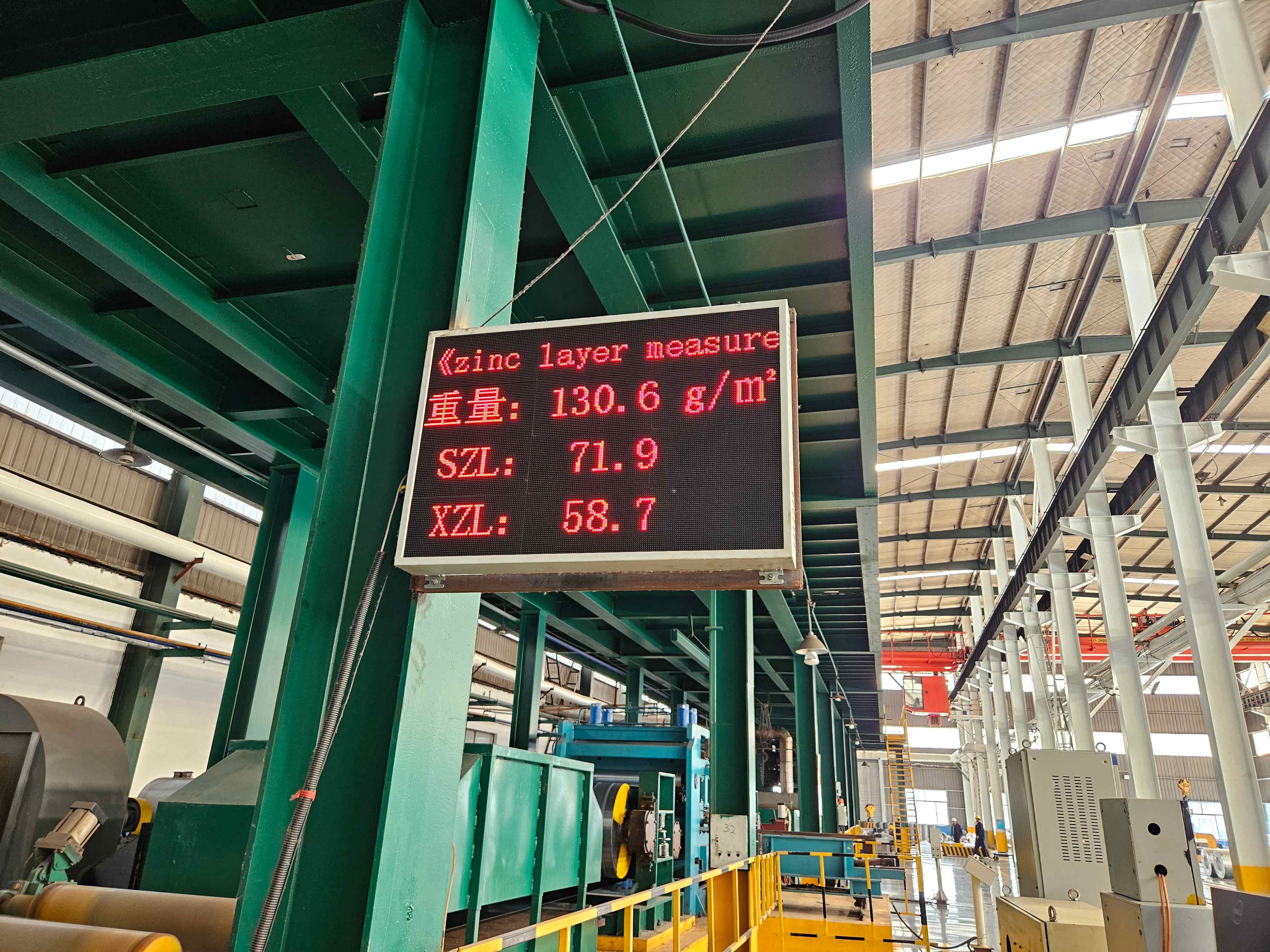

（JXL STEEL Zinc Layer Management System）

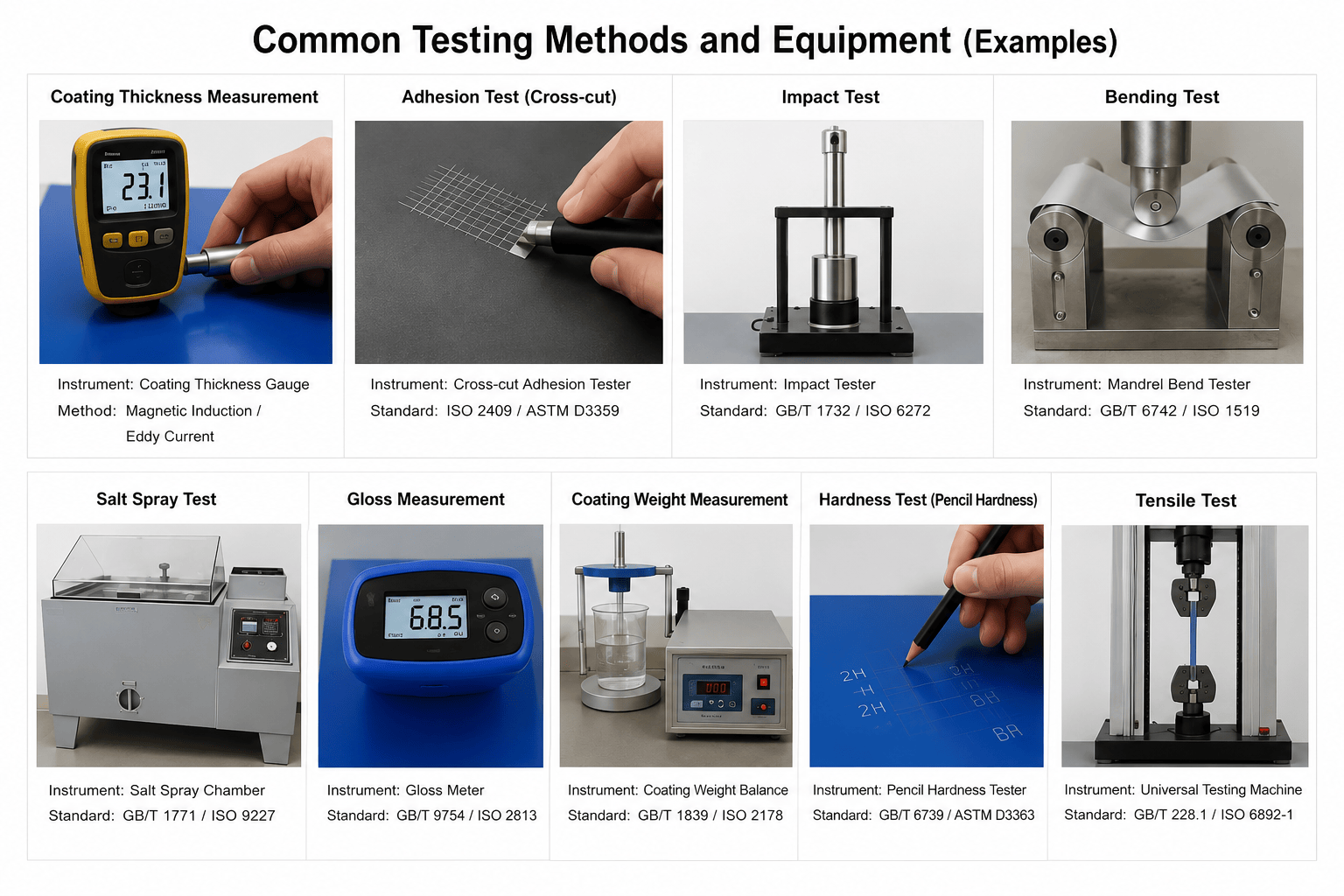

Quality Inspection

• We first conduct a visual inspection to ensure the Flower-patterned galvanized coil are free of defects, facilitating subsequent processing and aesthetic use.
• Coating Performance Testing: We use a magnetic thickness gauge or coating thickness gauge to test the paint film thickness, ensuring it meets the customer's required thickness. JXL STEEL can produce paint films with a thickness of 25 microns on both the front and back sides. After testing, we sequentially conduct adhesion, bending performance, hardness, and impact resistance tests to ensure the paint does not crack or peel during customer use, and the product is fully qualified.
• Corrosion Resistance Testing: We will conduct salt spray tests to ensure that the color remains vibrant even in harsh operating environments.
• Substrate Mechanical Property Testing

  Project	Method	Common requirements
  Yield strength	tensile test	190~350 MPa
  Tensive strength	tensile test	270~450 MPa
  Elongation	tensile test	≥20%
  Bending performance	bending test	Bending diameter as specified by thickness
  Stamping performance	stamping test	No cracks

  （The data table above is taken from the test data of the DX51D grade. If you have any special requirements, please contact us.）





•

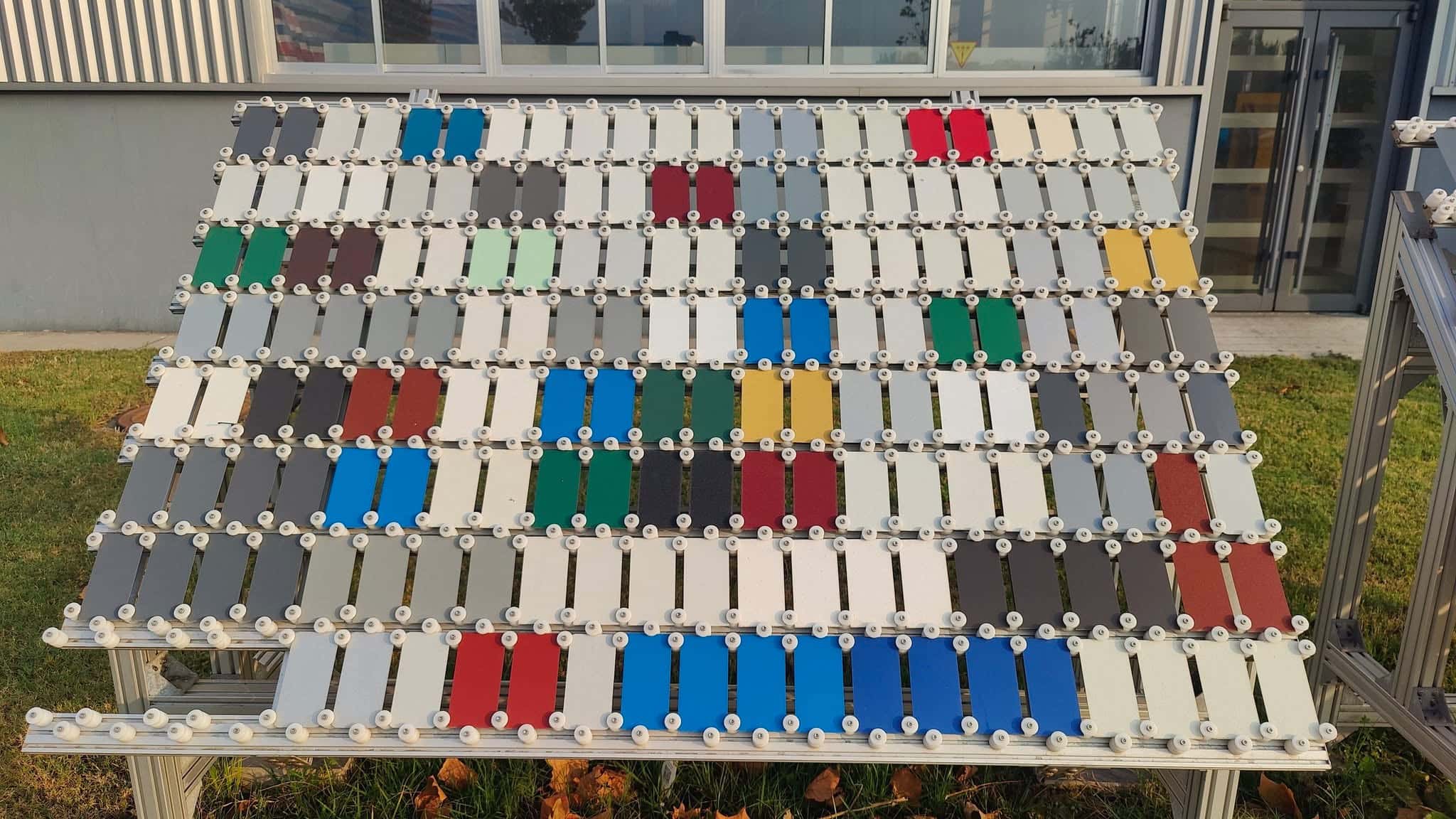

  We have set up a sun exposure testing ground outside our factory, where some samples have been stored for over 10 years, yet they still look brand new and have vibrant colors.

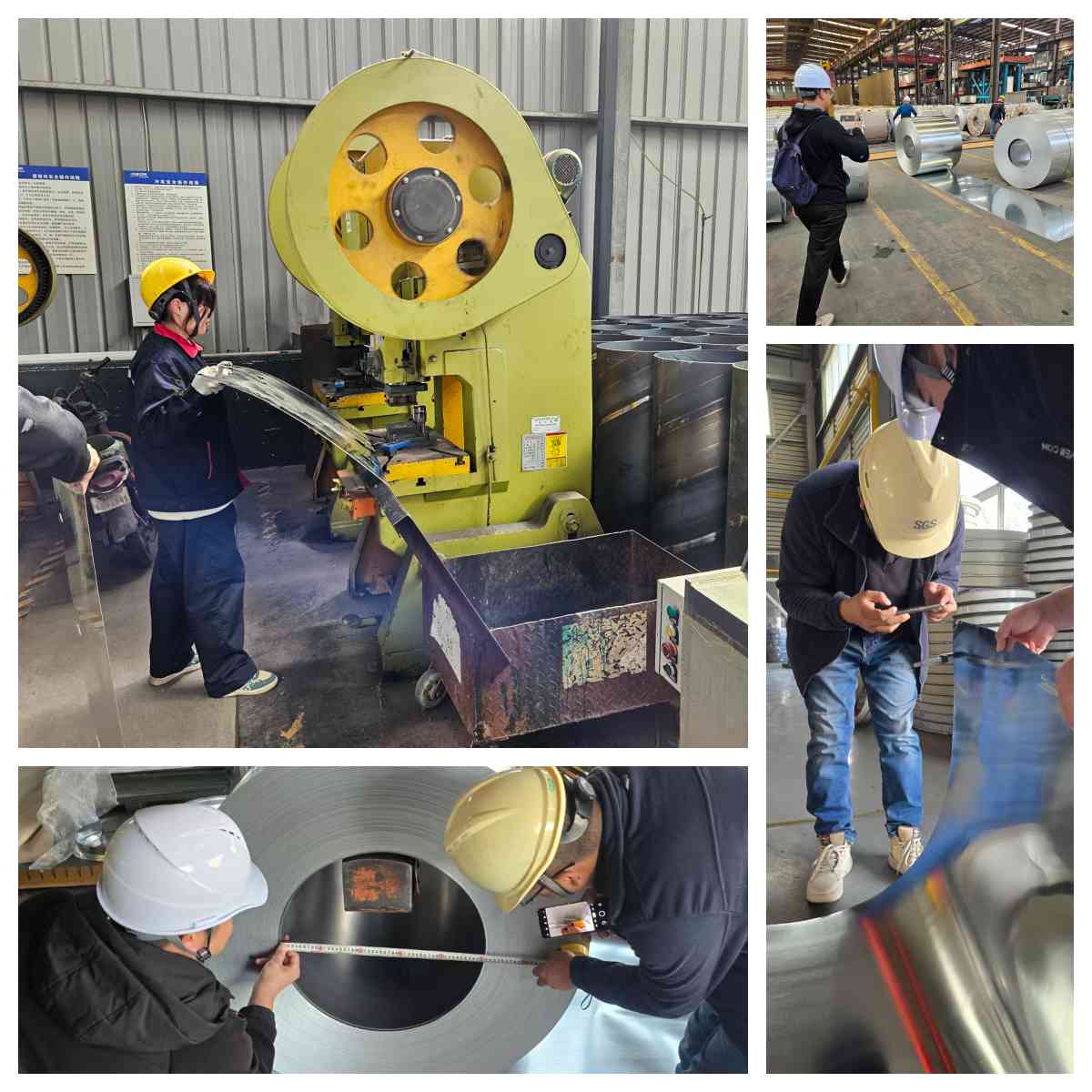

• A third party is conducting an independent inspection of our products.

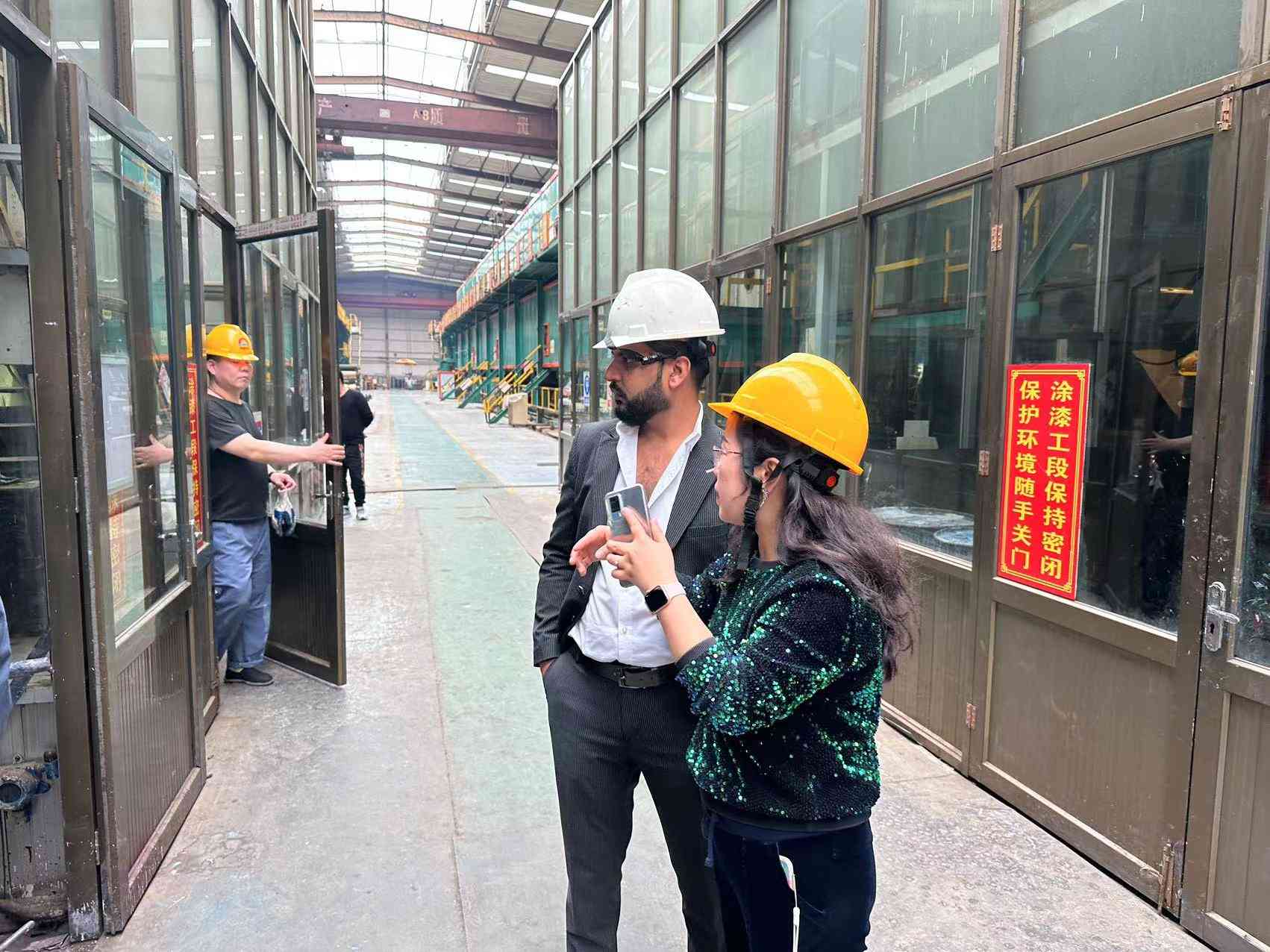

Export Cases

•

•

• We receive a large number of foreign visitors every day, and they all give high praise and recognition to the color steel coils produced by our company.

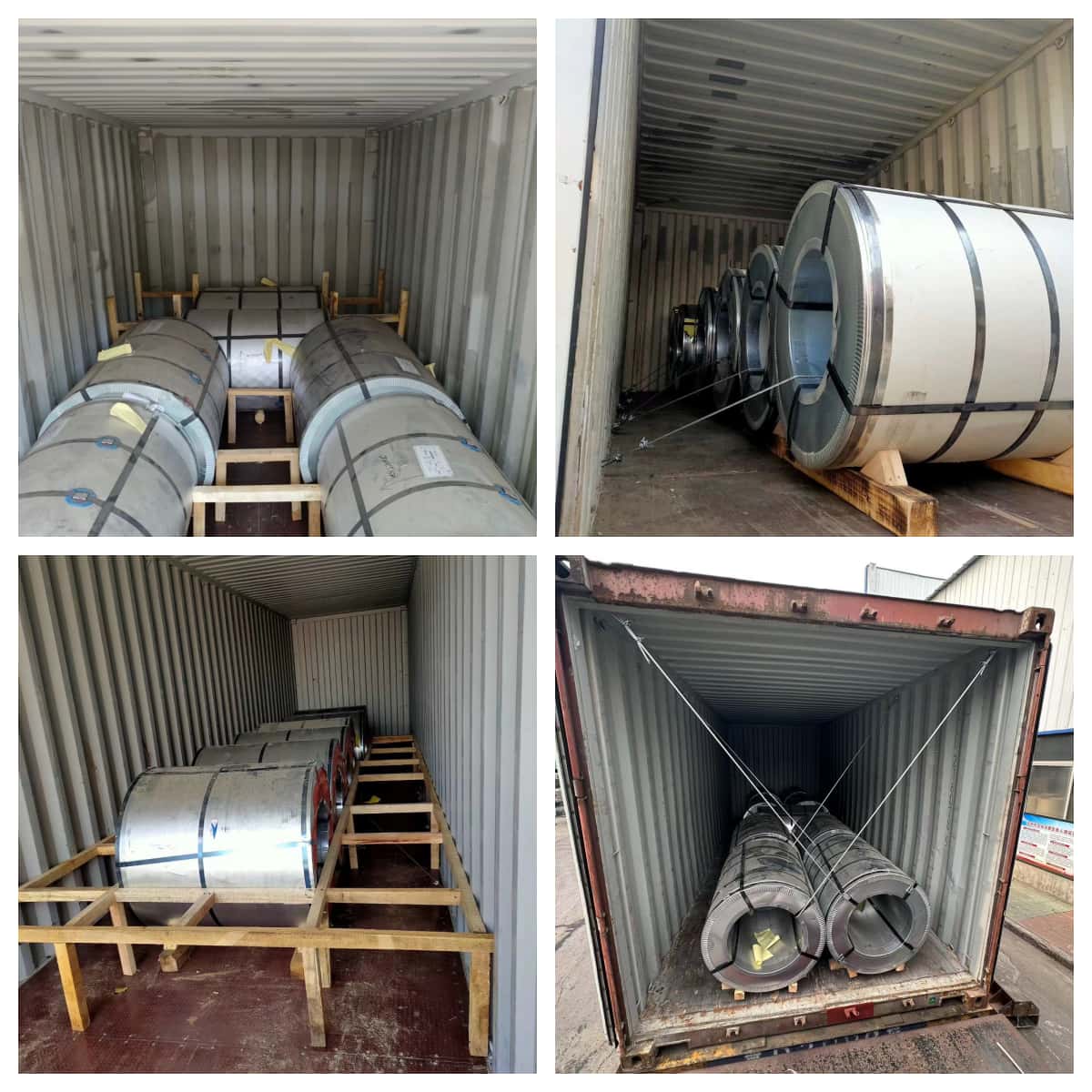

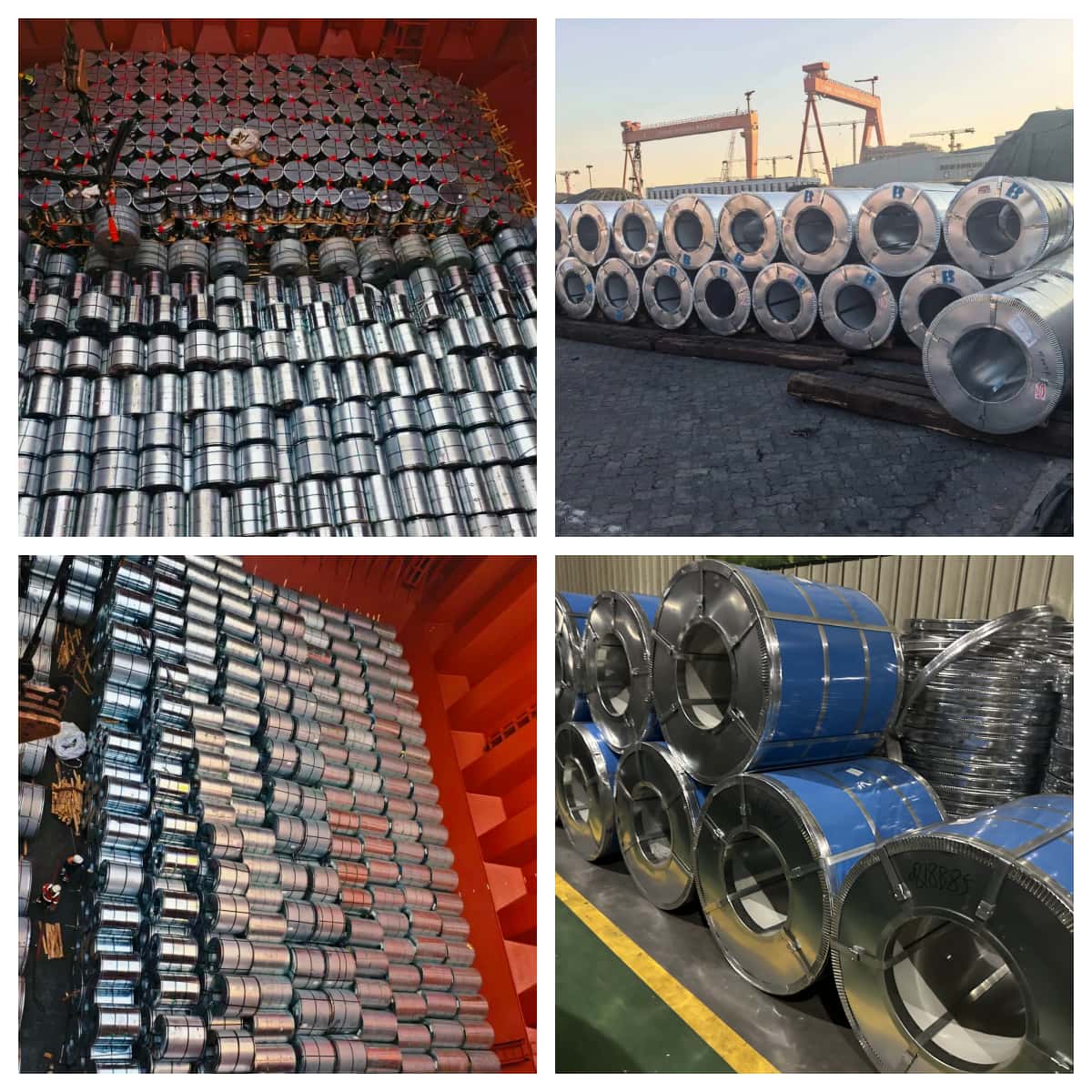

Shipping site

•

•

• Whether you choose container shipping or bulk cargo shipping, JXL STEEL guarantees that the products delivered to your factory will be intact and undamaged.
